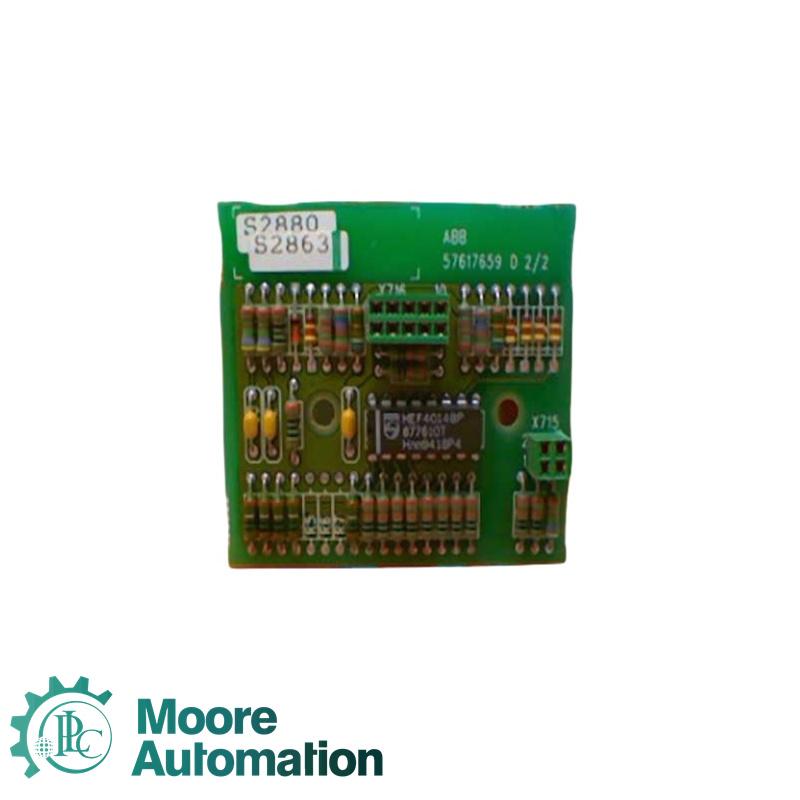

ABB 57617659 Drive Board

1.Power factor control mode: In this mode, the voltage/power factor can be adjusted through the central control point, and users can adjust it by pressing the voltage up and down keys or entering a new value.

2.Output Set Point Adjustment: The output set point will slowly change to the new value. If the generator cannot follow the set point, the system will sound an alarm and attempt to reach the set point again.

3.Reason for malfunction: If the set point cannot be reached, possible reasons may include excitation machine limitations, generator not connected to PPC or other generators, etc.

4.Widely used: This circuit board is widely used in ABB's large-scale products and other brands' PLC systems, such as ABB Ovation, Siemens, Allen Bradley, etc.
