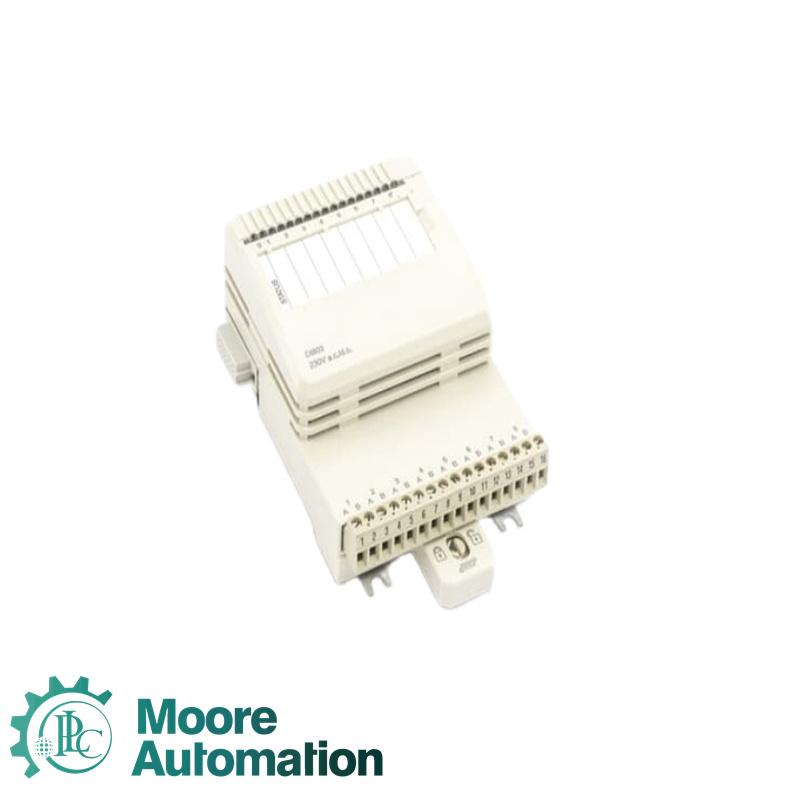

ABB DI803-eA 3BSE022362R2 Digital Input Module

Product info

Brand: ABB

Part number: DI803-eA 3BSE022362R2

Model(s): ABB Advant S800 I/0, ABB Advant-800xA

Description: Digital Input Module

Origin from: Sweden

Signal specification: 230 V a.c., 220 V d.c.

Input voltage range, "0": 0..50 V a.c., 0..40 V d.c.

Input voltage range, "1": 164..264 V a.c., 175..275 V d.c.

Filter times (digital, selectable): 2, 4, 8, 16 ms

Input frequencey range: 47..63 Hz

Analog filter On/Off delay: 5 / 28 ms

Rated insulation voltage: 250 V

Dielectric test voltage: 2000 V a.c.

Power dissipation: Typ. 2.8 W

The ABB DI803 is an 8-channel 230 V AC/DC digital input module used for S800 input/output. This module has 8 numerical inputs. The AC input voltage range is 164-264 volts, and the input current at 230 volts AC is 7.6 milliamps. The DC input range is 175-275 volts, and the output current at 220 volts is 1.6 milliamps. The input is isolated separately. Each input channel consists of current limiting components, EMC protection components, input status indicator LEDs, and optical isolation barriers.

In stock
