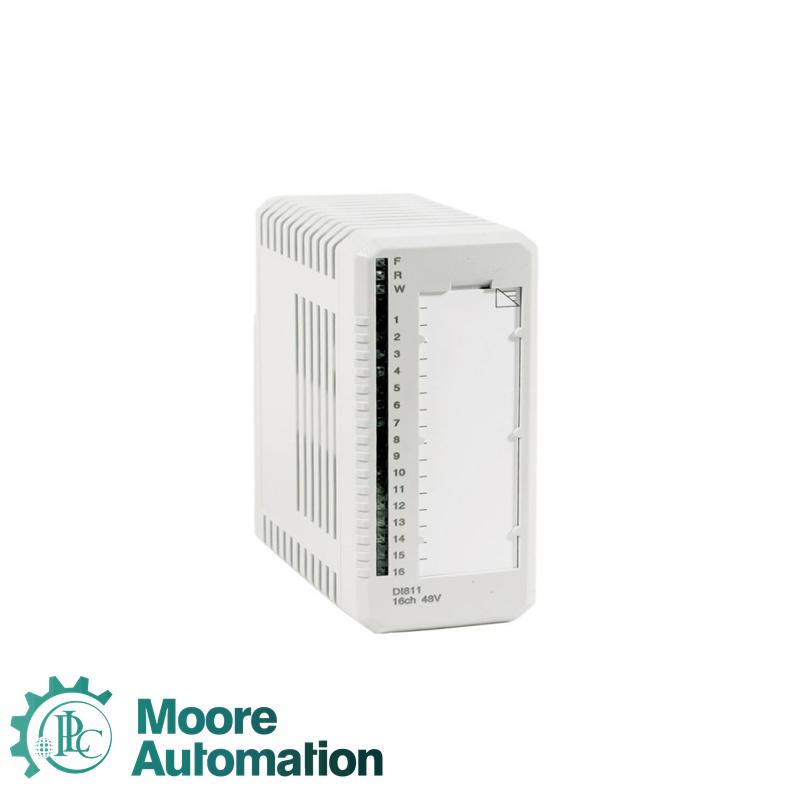

ABB DI811-eA 3BSE008552R2 Digital Input Module

Contact info

Sales manager:

Yuki

Mobile:

+8617359287459

Email:

sales6@askplc.com

Skype

live:498b014e476a7ffd

WhatsApp:

+86 17359287459

Website:

https://www.controldcs.com/

Add:

Siming District, Xiamen, Fujian, China

Product info

Brand: ABB

Part number: DI811-eA 3BSE008552R2

Model(s): ABB Advant S800 I/0, ABB Advant-800xA

Description: Digital Input Module

Origin from: Sweden

Signal specification: 48 V d.c.

Number of channels: 16

Maximum field cable length: 600 meters (656 yards)

Rated insulation voltage: 50 V

Dielectric test voltage: 500 V a.c.

Power dissipation: Typ. 2.7 W

Current consumption +5 V Modulebus: 50 mA

Weight: 0.15 kg (0.33 lbs.)

Dimensions: 102 mm * 45 mm * 119 mm

This module has 16 digital inputs. The input signal voltage range is 36 to 60 volts DC, and the input current is 4 milliamps at 48 volts. The input is divided into two separate isolated groups, each with eight channels and one voltage monitoring input. Each input channel consists of current limiting components, EMC protection components, input status indicator LEDs, and optical isolation barriers. If the voltage disappears, the process voltage monitoring input will emit a channel error signal. Error signals can be read through ModulaBus.
