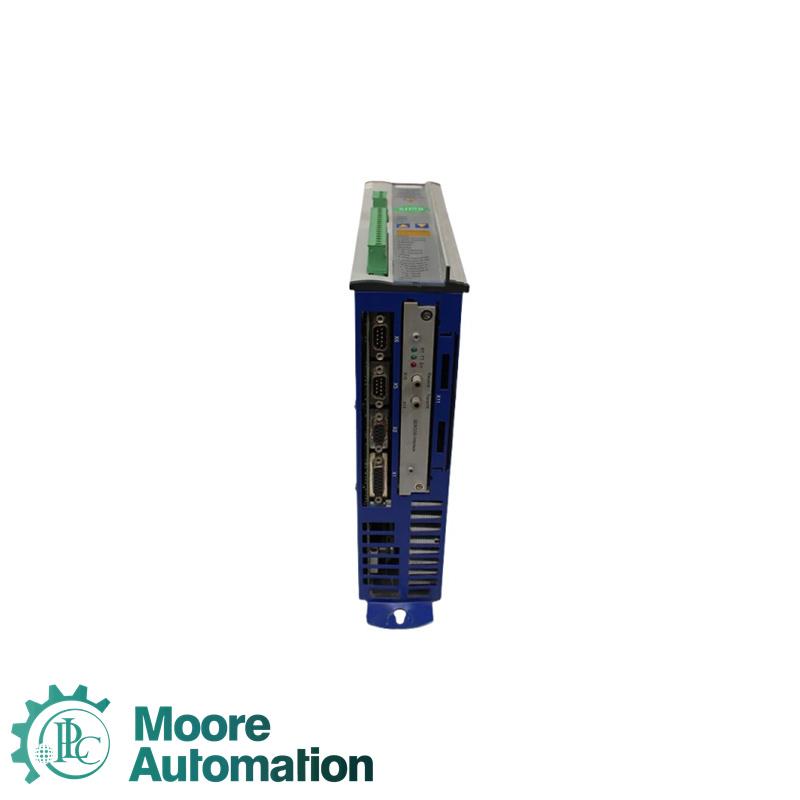

SCHNEIDER LXM15MD28N4 Motion Servo Drive

Contact info

Sales manager:

Yuki

Mobile:

+8617359287459

Email:

sales6@askplc.com

Skype

live:498b014e476a7ffd

WhatsApp:

+86 17359287459

Website:

https://www.controldcs.com/

Add:

Siming District, Xiamen, Fujian, China

Product info

Brand: SCHNEIDER

Part Number: LXM15MD28N4

Description: Motion servo drive

Origin from: France

Part Type: New

Range of product: Lexium 15

Component name: LXM15M

Network number of phases: Three phase

Power supply voltage: 208...480 V - 10...10 %

EMC filter: Integrated

Continuous output current: 10 A three phase

Transient RMS output current: 20 A for 5 s three phase

Peak output current: 28 A three phase

Nominal power: 5.7 kW three phase

Line current:

12.6 A at 480 V three phase

9.7 A at 208 V three phase

Apparent power: 7 kVA

Power supply voltage limits: 187.2…528 V

Power supply frequency: 50/60 Hz - 5...5 %

Power supply frequency limits: 47.5…63 Hz

Switching frequency: 8 kHz

Features

1.High performance control: The LXM15MD28N4 servo drive provides precise position, speed, and torque control, suitable for high-precision industrial automation applications.

2.Compact Design: This driver is designed to be compact, making it easy to integrate into various mechanical and automation systems while saving installation space.

3.Flexible Communication: Supports multiple communication protocols such as CANopen and Modbus, making it easy to integrate with other automation devices and meet diverse industrial communication needs.

4.Reliability: Designed to be sturdy and suitable for harsh industrial environments, ensuring long-term stable operation.

5.Multiple protection functions: LXM15MD28N4 has multiple protection functions such as overvoltage, overcurrent, and overheating, which enhance the safety of the system and the lifespan of the equipment.

6.Easy to debug and maintain: The drive is equipped with an intuitive settings interface and debugging tools, simplifying the installation and maintenance process.
