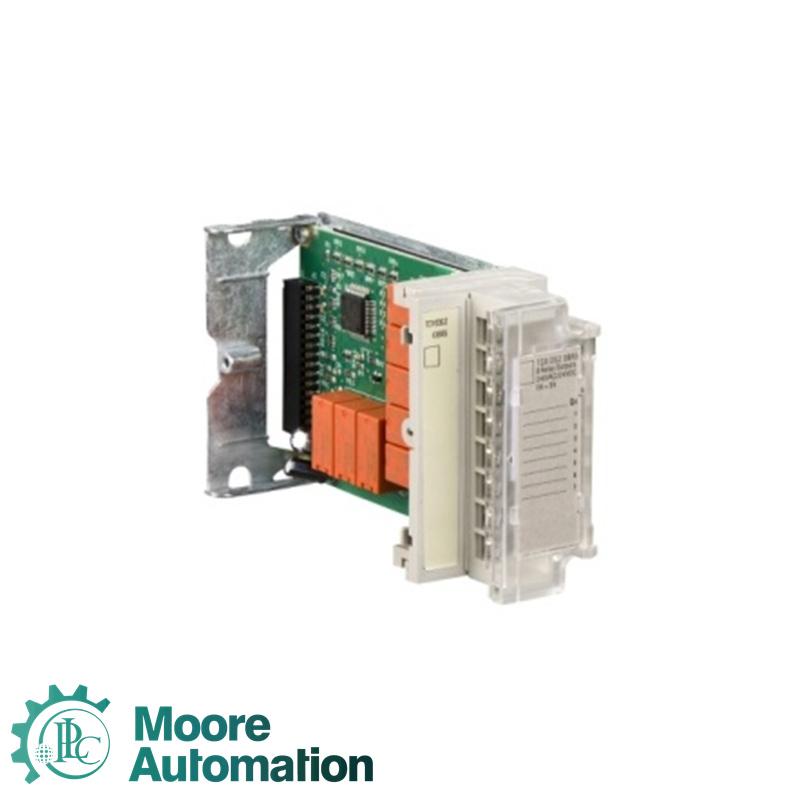

SCHNEIDER TSXDSZ32R5 Relay discrete output module

Contact info

Sales manager:

Yuki

Mobile:

+8617359287459

Email:

sales6@askplc.com

Skype

live:498b014e476a7ffd

WhatsApp:

+86 17359287459

Website:

https://www.controldcs.com/

Add:

Siming District, Xiamen, Fujian, China

Product info

Brand: SCHNEIDER

Part Number: TSXDSZ32R5

Description: Relay discrete output module

Origin from: France

Part Type: New

Range of Product: Modicon TSX Micro automation platform

Discrete output number: 32 screw terminal block

Response Time: < 10 ms

Current Consumption: 175 mA

Power dissipation in W: 3.5 W

Isolation voltage: 1500 V 1 s

Insulation resistance: >= 10 mOhm

Features

1.Number of output channels: TSXDSZ32R5 provides 32 digital output channels. Each channel can be independently controlled, suitable for application scenarios that require multiple independent switches or control outputs.

2.Output type: This module supports relay output (R5 represents relay output type), suitable for controlling various load devices such as lights, valves, motors, etc. Relay output has high isolation and is suitable for a wider range of applications.

3.Relay specifications: Relays are typically designed to have high switching capabilities and can handle different voltage levels and load types. The specific load capacity depends on the design and application environment of the relay, but it can generally meet the needs of industrial control.

4.Modular design: TSXDSZ32R5 adopts modular design, which facilitates users to expand or maintain the system according to their needs. The module can be easily installed on DIN rails, simplifying the installation process.

5.LED indicator lights: Each output channel is usually equipped with LED indicator lights to display the status of the channel. This enables users to intuitively monitor the working status of each channel, which helps with rapid diagnosis and troubleshooting.

6.Compatibility: This module is compatible with Schneider Electric's Modicon series PLCs, especially the Premium and Quantum series, making it easy to integrate into existing automation control systems.
